TECHNICAL SPECIFICATIONS

DATA AND COMMUNICATION CABLES

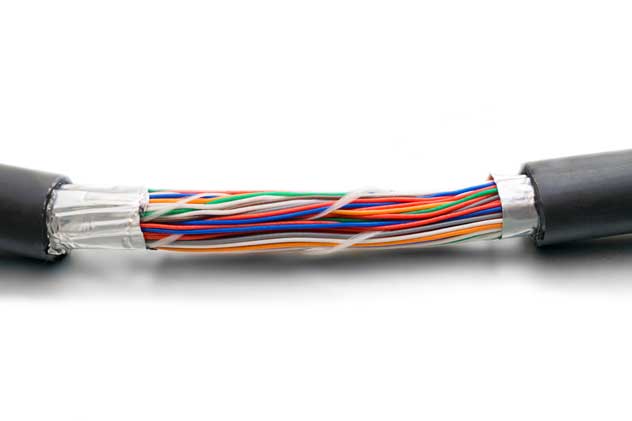

Data and communications cables have become ubiquitous with new applications discovered frequently. The modern industrial environment is automated through their ability to control equipment and provide inter-device communication. They also serve as the backbone for our communications networks of local or global scale.

CABLE TECHNICAL DATA SHEET ( LiYY)

Sl No.
No. of Cores & Nominal
Cross Sectional Area
Sq. mm
Maximum Conductor
Resistance @ 20oC
Ω/km
Approx. Cable Diameter
mm
Approx. Copper Weight
Kg/Km
Approx. Cable Weight
Kg/Km
1
2 x 0.14
140
3.3
9.38
14.2
2
3 x 0.14
140
3.4
10.73
15.7
3
4 x 0.14
140
3.7
12.52
17.9
4
5 x 0.14
140
4
15
21
5
7 x 0.14
140
4.6
18.24
24.9
6
8 x 0.14
140
5
20.8
28.2
7
10 x 0.14
140
5.5
25.05
33.6
8
12 x 0.14
140
5.7
25.05
33.6
9
14 x 0.14
140
6
31.45
40.8
10
16 x 0.14
140
6.3
33.5
43.5
11
20 x 0.14
140
6.9
34.66
44.7
12
25 x 0.14
140
7.6
28.05
49
13
36 x 0.14
140
8.7
31.45
44.8
14
37 x 0.14
140
8.7
33.5
43.5
15
2 x 0.25
78
4.1
34.66
44.7
16
3 x 0.25
78
4.3
38.41
49
17
4 x 0.25
78
4.7
9.1
33.5
18
5 x 0.25
78
5.1
11.3
40
19
7 x 0.25
78
5.8
15.9
52.9
20
8 x 0.25
78
6.3
18.5
63.7
21
10 x 0.25
78
7.1
23.1
80.3
22
12 x 0.25
78
7.3
27.7
88.2
23
14 x 0.25
78
7.7
32.4
98.6
24
16 x 0.25
78
8.1
37
110.4
25
18 x 0.25
78
8.5
42
123.6
26
20 x 0.25
78
9
46.7
137.5
27
25 x 0.25
78
10
58.4
169.3
28
30 x 0.25
78
10.5
70
193.8
29
32 x 0.25
78
11
74.7
208.5
30
36 x 0.25
78
11.4
84
229.6
31
37 x 0.25
78
11.5
86.4
223.6
32
2 x 0.34
58
4.2
6.2
25.8
33
3 x 0.34
58
4.4
9.2
30.8
34
4 x 0.34
58
4.8
12.3
37.6
35
5x 0.34
58
5.2
15.4
45.1
36
7 x 0.34
58
5.7
21.5
57
37
8 x 0.34
58
6.5
25.1
72
38
10 x 0.34
58
7.3
31.4
90.8
39
12 x 0.34
58
7.6
37.7
100.3
40
14 x 0.34
58
7.9
43.9
112.5
41
16 x 0.34
58
8.4
50.2
126.2
42
18 x 0.34
58
8.8
57
141.6
43
20 x 0.34
58
9.3
63.4
157.6
44
21 x 0.34
58
9.3
66.5
160.3
45
25 x 0.34
58
10.3
79.2
195.1
46
30 x 0.34
58
10.9
95
223.3
47
2 x 0.5
39
4.8
9.2
35.2
48
3 x 0.5
39
5.1
13.8
42.4
49
4 x 0.5
39
5.5
18.4
52.2
50
5 x 0.5
39
6
23
63
51
6x 0.5
39
6.6
27.6
75
52
7 x 0.5
39
6.7
32.2
80.3
53
8 x 0.5
39
7.6
37.6
101.1
54
10 x 0.5
39
8.6
47
128.2
55
12 x 0.5
39
8.9
56.4
142.2
56
14 x 0.5
39
9.3
65.8
160
57
16 x 0.5
39
9.8
75.2
179.9
58
20 x 0.5
39
11
94.9
225.6
59
25 x 0.5
39
12.2
118.6
280.3
60
30 x 0.5
39
12.9
142.3
321.8
61
2 x 0.75
26
5.1
13.8
42.8
62
3 x 0.75
26
5.4
20.7
52.5
63
4x 0.75
26
5.9
27.6
65.2
64
5 x 0.75
26
6.5
34.5
79.1
65
7 x 0.75
26
7.2
48.4
101.8
66
8 x 0.75
26
8.1
56.4
127.1
67
10x 0.75
26
9.2
70.5
161.4
68
12 x 0.75
26
9.5
84.6
180.4
69
16 x 0.75
26
10.6
112.7
229.7
70
20 x 0.75
26
11.8
142.3
288.5
71
25 x 0.75
26
13.2
177.9
359.2
72
2 x 1
19.5
5.6
18.4
53.4
73
3 x 1
19.5
6
27.6
66
74
5 x 1
19.5
7.2
46.1
100.3
75
2 x 1.5
13.3
6.7
27
75.7
76
3 x 1.5
13.3
7.1
40.5
93.9
77
4 x 1.5
13.3
7.8
54
117.4

Technical Data

Standard : Based on VDE 0812
Voltage grade (not for power installation) : 0.14 mm² = 350 V; >/= 0.25 mm² = 500 V
Insulation Resistance : Min. 20 GΩ x cm
Temperature Range : Flexing -5°C to +70°C. Fixed installation -30°C to +70°C
Minimum Bending Radius : For flexible use 10 x cable ø
Test Voltage : Up to 0.25 mm² = 1200 V. From 0.34 mm² = 2000 V
Breakdown Voltage : Up to 0.25 mm² = 2400 V. From 0.34 mm² = 4000 V

Properties

PVC self-extinguishing and flame retardant according to EN 60332-1-2.
Capacitance (approx. Value)
up to 0.5 mm² – 120 nF/km
above 0.5 mm² – 160 nF/km.
Inductance approx. 0.65 mH/km.

Application

  • These are special PVC data cables used for flexible use with free movement without tensile stress of forced movements in dry, moist and wet rooms but not suitable for open air .
    Wherever the construction requirements call for a minimum outer diameter these cables are being used for data and signal transmission.

    • Click here to know more about Data and Communication Shielded Cables ( LiYCY)
