TECHNICAL SPECIFICATIONS

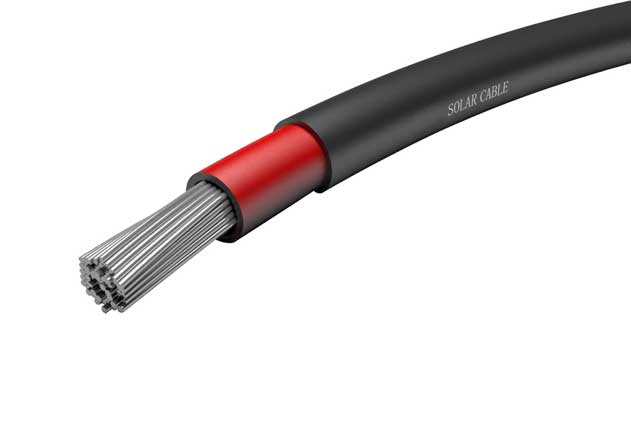

DC SOLAR CABLE

Solar photovoltaics is now, after hydro and wind power, the third most important renewable energy source in items of globally installed capacity. This results in the great demand for ‘SOLAR CABLE’. Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components in the photovoltaic system. Matching step with the environment friendly shift the Solar Cable has been made which performs highest standards of application in its diverse usage.

Technical Specification Of DC Solar Cable

Nominal Cross Sectional Area Size
Sq. mm
Size of each strand (max)
mm
No of each strand (max)
Conductor Resistance (max)
ohm/km
Insulation thickness as per TUV Specifications-2 Pfg 1169/08.2007
mm
Insulation Thickness as per EN-50618 -2015
nom, mm
Outer Sheath thickness as per TUV 2Pfg 1169/08.2007
mm
Outer Sheath Thickness as per EN-50618-2015
nom, mm
Nomonal Cable dia as per TUV 2Pfg 1169/08.2007
mm
Nominal Cable Dia as per EN-50618-2015
mm
Maximum Current Carrying capacity single cable in free Air
Amps
Maximum Current Carrying capacity when 2 cables loaded on a surface
Amps
1.5
0.26
30
13.7
0.5
0.7
0.5
0.8
4.1
4.6
30
24
2.5
0.26
50
8.21
0.5
0.7
0.5
0.8
4.5
5.1
41
33s
4
0.31
56
5.09
0.5
0.7
0.5
0.8
5
5.6
55
44
6
0.31
84
3.39
0.5
0.7
0.5
0.8
5.55
6.1
70
57
10
0.41
80
1.95
0.5
0.7
0.5
0.8
6.5
7.1
98
79
16
0.41
126
1.24
0.5
0.7
0.5
0.9
7.55
8.3
132
107
25
0.41
196
0.795
0.9
0.9
1
1
10.5
10.1
176
142
35
0.41
276
0.565
0.9
0.9
1.1
1.1
12
11.5
218
176
50
0.41
396
0.393
1
1
1.2
1.2
14
13.3
276
221
70
0.51
360
0.277
1.1
1.1
1.3
1.2
16
15.2
347
278
95
0.51
475
0.21
1.1
1.1
1.5
1.3
18
16.9
416
333
120
0.51
608
0.164
1.2
1.2
1.6
1.3
20
18.7
488
390
150
0.51
750
0.132
1.4
1.4
1.7
1.4
22.5
20.8
566
453
185
0.51
925
0.108
1.6
1.6
1.9
1.6
25
23.2
644
515
240
0.51
1221
0.0817
1.7
1.7
2.1
1.7
28
26.2
755
620

Conductor Type

Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5

Insulation

UV resistant, cross linkable, halogen free, flame retardant compound for core insulation

Core Identification

Red, black or natural

Sheath

UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation

Cable Colour

Black

Properties

  • A lifetime ‘Partner’ lasts up to 30 years even under tough conditions

  • Used in extreme weather conditions

  • Equipped with UV Resistance

  • Halogen-free: low smoke emission and low toxicity during fire

  • Flame & Fire retardant

  • Flexibility & strip ability: for fast and easy installation

  • Easily Recyclable: in accordance with new government norms

  • Easy installation: with colour identification

  • Suitable to common connector types as per TUV 2 Pfg 1169/08.2007. EN 50618 & IEC 60502-1
